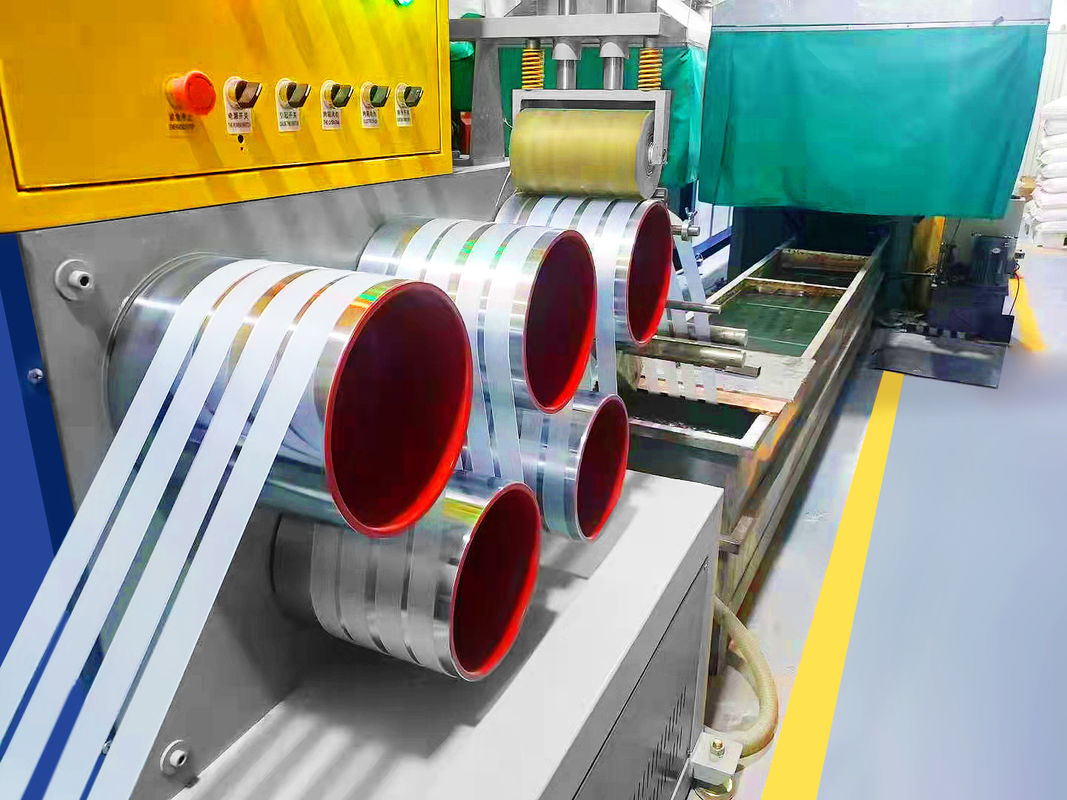

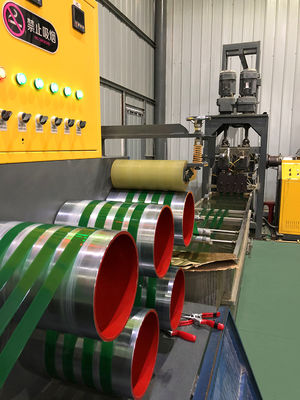

Electrical Control Plastic PP PET Packing Belt Extruder Machine With Double Disk Winder
PRODUCT DESCRIPTION OF PP PET PACKING MACHINE
PET/PP strap is known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline, have been widely used in the steel industry, chemical fiber industry, aluminum ingots, paper, brick kiln industry, screw industry, tobacco industry, electronics, textiles and wood, etc.; is replaced by a new high-strength steel strapping, is the worlds most widely used for steel products.
PET plastic-steel strapping equipment is a specialized production line that converts recycled or virgin polyethylene terephthalate (PET) into high-strength plastic strapping through a process including melting, extrusion, stretching, shaping, and winding. PET plastic-steel strapping is widely used for heavy-duty packaging in industries such as steel, aluminum, papermaking, chemical fiber, and building materials due to its high strength, corrosion resistance, aesthetic appeal, and recyclability.
| Max winding diameter |
500mm |
| Max winding width |
220mm |
| Max winding line speed |
280m/min |
| Motor power |
1.5kw |
| Winding displacement motor power |
750w |
Regarding the Environmental Impact of the Machine:
PET strapping uses safe and environmentally friendly raw materials, making operation and recycling more convenient.
No Sharp Edges: Soft texture, unlike steel strapping, it avoids scratches to operators and will not damage the surface of packaged goods (such as sheets, profiles, cartons, etc.). Lightweight and easy to handle: With a density of only 1.38g/cm³, about 1/6 that of steel strapping, it is lighter for the same length, requiring less effort when manually binding and reducing the load on the equipment when used with a strapping machine.
.

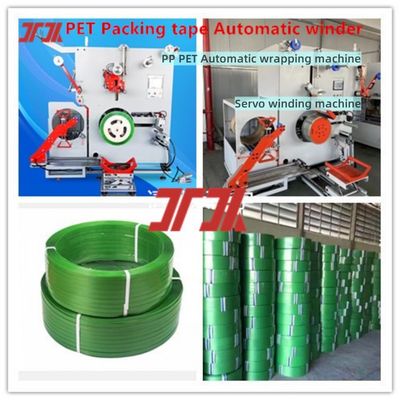

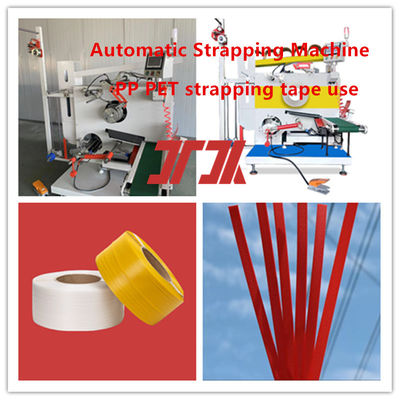

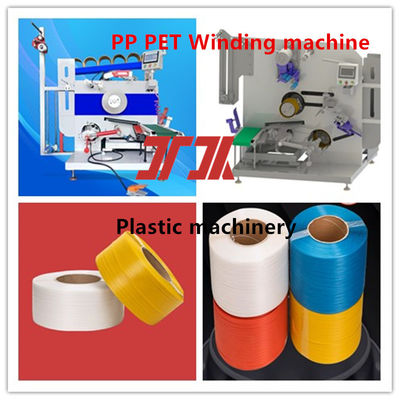

Features of PET strap, PP strap Winder Machine
(1)Special twin screw extrusion technology and single screw extrusion technology can be choosing as per
customer needs.
(2) Process 100% recycled PET bottle flakes.
(3) Even plasticization and stable extrusion with PLC automatic control for the full line.
(4) As per different requirements, changing a coating materials for make strap have better and special function.
For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength
when welding strap.
(5) Melt filter with two pistons with air venting design and back flushing.
(6) Number of strap:1,2,4,6,Width: 9mm-20mm,Thickness: 0.6mm-1.5mm
(7)Workers: 2 -3 workers per shift, 12 hours/shift.
TURNKEY PROJECT SERVICE
1. We will provide all the machines for the complete production according to customer's requirements.
2. We will provide complete service for factory layout and other information to help customer to build the factory.
3. We can also provide the raw material to the customer if need.
4. We will provide good service for machine installation and training, until the customers can run the machines and make stable production.
5. Except one year quality guarantee, we will provide after-sell service for all the life.
6. For long-term cooperation, we always provide good quality, good price and good service to customer. We are the professional and trustable supplier for turnkey projects. Let us do win-win business together.
