Used For Machine Or Manual Use PET Strap Making Machine With Schneider GUGAO Electric Components
Product Description of PET strap making extruder machine
• Raw material process and extrusion system.
• High performance crystallizing and drying system.
• Production can use 100% recycled material to obtain a high add value strapping band.
• Better on strip stretching and heating, rapid heating, complete strip orientation stretching.
• Special designed technology, make sure the strip forming rapidly
• Prevent the strip from un-orientation after orientation, eliminate internal stress,make sure the quality of strip accuracy and quality.
Technical Parameters of PET 1 to 4 production machine
| Item |
JTPET-125 |
| Screw design |
Single screw |
| Straps Qty. |
4 straps |
| Output/Day |
10-10.5T/24 hours |
| Screw Dia. |
125mm |
| Winder Qty. |
4 sets |
| Material used |
PET raw material or 100% PET bottle flakes recycled |
| Running power |
180-190kw |
| Installed power |
300kw |
| Strap specifications |
Width 9-32mm Thickness 0.4-1.2mm |
| Workshop area |
L (58m) ×W (2m) ×H (8m) |
| Electric components |
Schneider |
Production Process of PET Strap Production Machine
Material→ Dehumidifying and Crystallizing → Extruding → Mold → Cooling → Haul-off →Oven Pre-heating → The First Drawing and Stretching →The Second Drawing and Stretching → Embossing →Hot Forming → cooling→ Winding

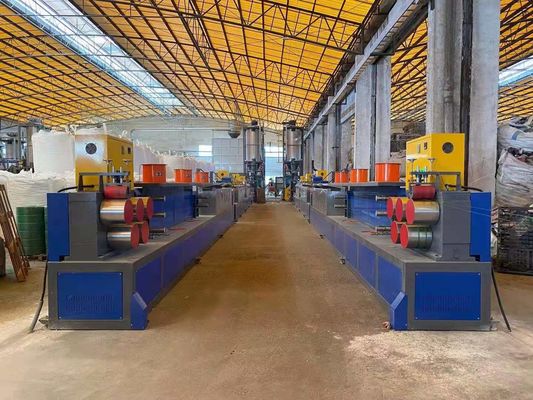

PET strap making line configuration reference
|
Item
|
Name
|
Quantity
|
|
1
|
Dehumidification and drying system
|
1 set
|
|
2
|
Oil and dust filter
|
1 set
|
|
3
|
Horizontal mixer(5000L)
|
1 set
|
|
4
|
Pre-drying tower(5000L)
|
1 set
|
|
5
|
Screw Feeder
|
3 set
|
|
6
|
Barrel(5000L)
|
1 set
|
|
7
|
¢125mm Extruding Machine
|
1 set
|
|
8
|
Melt pump
|
1 set
|
|
9
|
Single cylinder filter
|
1 set
|
|
10
|
PET Mould output 4straps
|
1 set
|
|
11
|
Cooling water tank
|
1 set
|
|
12
|

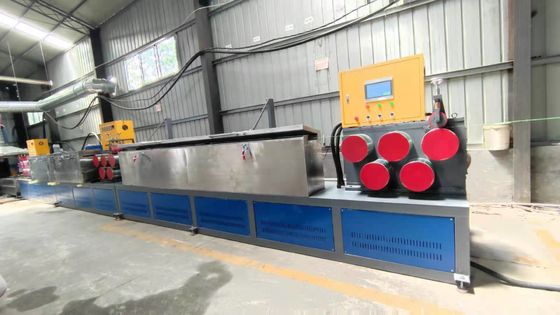

Stretching oven
|
1 set
|
|
13
|
Five roller gearbox
|
3 set
|
|
14
|
PLC electrical control system
|
1 set
|
|
15
|
Forming oven
|
1 set
|
|
16
|

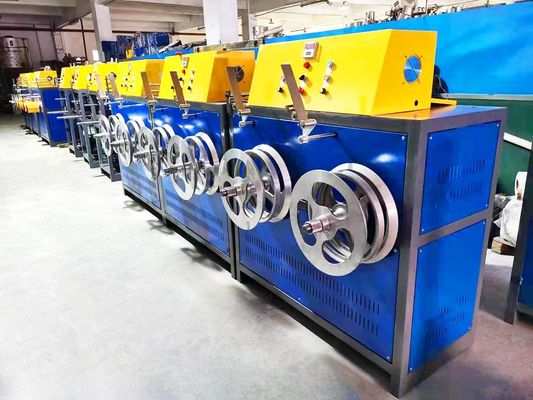

Double disk winder
|
4 set
|

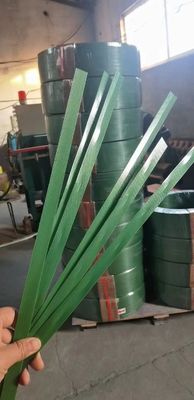

Application of PET strap
PET PP PE strap , known as plastic steel band, which is used in place of steel on the world of a new environmentally friendly packaging materials, the development of new materials in recent years the cost of success and a substantial decline,have been widely used in the steel industry,chemical fiber industry,aluminum ingots,paper,brick kiln industry,screw industry,tobacco industry,electronics,textiles and wood,etc;is replaced by a new high-strength steel strapping,is the world's most widely used for steel products.
